Introduction of Ion Chromatography Instrument:
Ion Chromatography Instrument
The ion chromatography instrument is a high-performance instrument designed for the separation and analysis of ions in a sample. The ion chromatograph instrument is equipped with advanced technology to provide accurate and reliable results for various applications. The ion chromatography instrument has 48 injection positions, allowing for efficient and simultaneous analysis of multiple samples. It has a column capacity of 2pcs, with one 250mm column and one 150m column, providing flexibility in analysis methods.
Technical Parameters of Ion Chromatography Instrument:
| IC6300 High Linearity and Concentration Accuracy 0.1mM Ion Chromatography Instrument |
| Product Name | Ion Chromatography Instrument |
| Working Conditions | |
| Working Power | 220V, 50Hz |
| System Parameters | |
| Qualitative Repeatability | ≤1% |
| Quantitative Repeatability | ≤1% |
| Pump System | |
| Flow Rate | 0.001～15.000mL/min |
| Pressure Range | 0~42Mpa |
| Flow Rate Setting Error | ＜0.2% |
| Flow Rate Stability | ＜0.2% |
| Eluent | |
| Flow Rate Range | 0.001~3.000mL/min |
| Eluent Concentration Range | KOH/MSA 0.1~100.0mM |
| Accuracy of Concentration | 0.1mM |
| Max Working Pressure | 21MPa (3000psi) |
| Autosampler (AS2800 series) | |
| Quantitative Repeatability | Full loop injection ＜0.5%RSD |
| Linearity | ＞0.9995 |
| Injection Positions | 48 Positions |
| Working Temperature | 10~40°C |
| Sample Bottle | 5mL/100mL |
| Injection Volume | 10μL~400μL |
| Autosampler (AS3110 Series) | |
| Injection Positions | 120/64/92 positions for optional |
| Cooling Temperature | 4~30°C |
| Injector | Standard 500μL, options 250μL, 100μL, 2500μL |
| Column Oven | |
| Temperature Range | Room temperature, ＋5℃~70℃ |
| Temperature Control Stability | ≤0.1°C |
| Temperature Setting Error | 0.05°C |
| Column Capacity | 250mm and 150mm |
| Suppressor | |
| Dead Volume | 50μL |
| Suppression Capacity | 170ueq/min |
| Pressure Resistance | 3Mpa |
| Conductivity Detector | |
| Baseline Noise | ≤0.0005μS/cm |
| Baseline Drift | ≤0.0005μS·cm-1/30min |
| Min Detection Concentration(Cl) | ≤0.0005μg/mL |
| Min Detection Concentration (Li) | ≤0.0002μg/mL |
| Cell Volume | ≤0.4μL |
| Detector Resolution | 0.00238nS/cm |
| Temperature Setting Error | ±0.01°C |
| Ampere Detector | |
| Drive Voltage Range | -2.048V---2.048V |
| Drive Voltage Resolution | 0.001V |
| Single Input Range | Integral mode, 50pc---200uC |
| DC mode | 1pA---74uA |
| Cell Volume | ＜0.2μL |
| Min Detection Concentration | I: 0.001μg/mL |
Applications of Ion Chromatography Instrument:

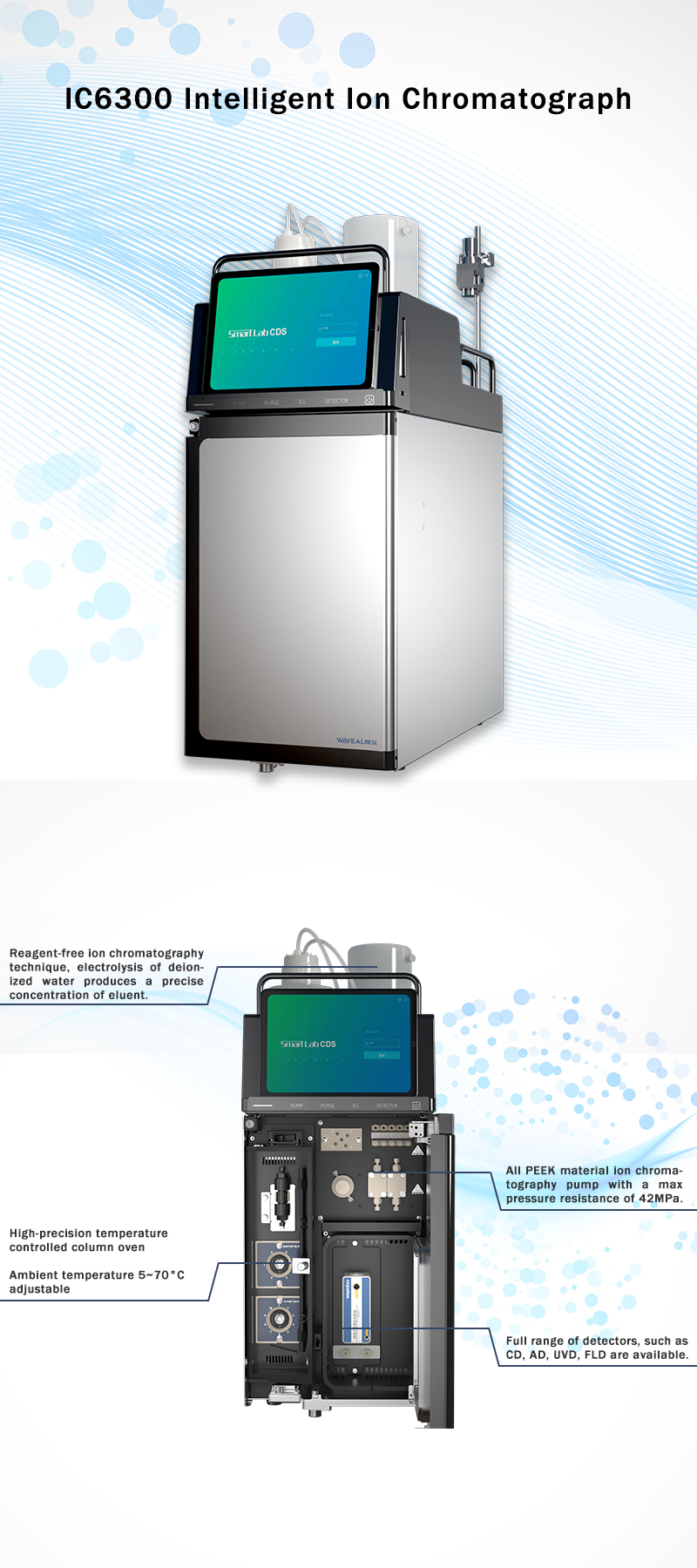

Wayeal IC6300 Ion Chromatography Instrument
The ion chromatography instrument is suitable for a wide range of applications, including environmental monitoring, pharmaceutical analysis, food and beverage testing, and more. It can be used to analyze various ions, such as anions, cations, and polarizable substances. With its advanced technology and key features, it provides accurate and precise results for various applications. Whether you are conducting research in a laboratory or performing quality control in an industrial setting, the Wayeal IC6300 ion chromatography instrument is the perfect solution for all your ion analysis needs.
Applications and Scenarios
The Wayeal IC6300 ion chromatography instrument can be used in various applications and scenarios such as:
Environmental analysis - Detecting and monitoring pollution levels in water, soil, and air by analyzing the concentration of ions.
Food and beverage quality control - Testing for the presence of harmful ions in food and beverages to ensure safety and compliance with regulations.
Pharmaceutical analysis - Analyzing the purity and potency of pharmaceutical products by measuring the concentration of ions.
Chemical research - Identifying and quantifying ions in chemical compounds for research and development purposes.
Industrial process control - Monitoring and controlling the levels of ions in industrial processes to ensure product quality and efficiency.
